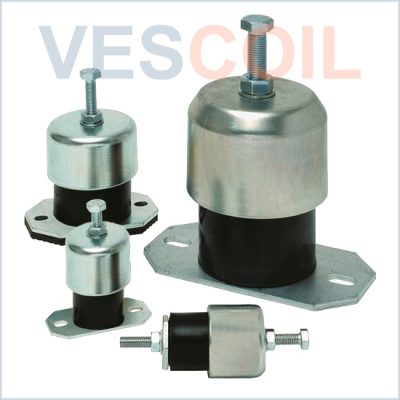

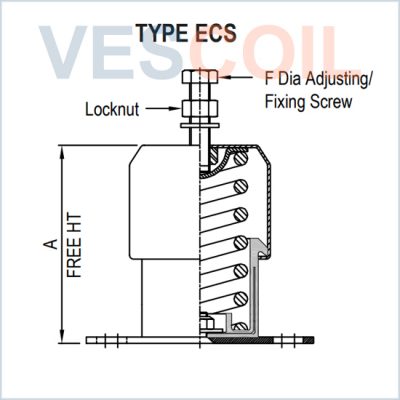

ENCLOSED SPRING MOUNTING – TYPE ES & ECS – DEFLECTION 20/ 50 MM – LOAD 10 / 1400 KG
A unique range of mountings designed primarily for building services applications where the control of low frequency vibration and noise emanating from mechanical plant is of paramount importance.
The benefits of a combined rubber and steel housing for the spring have helped establish the ES and ECS mountings as industry standards accepted by specifiers, equipment manufacturers and mechanical services installers alike.
Fig:
9431
Class & Approvals:
LR / UKAS
Rated load (kg):
10 – 1400 kg
Bolt dia:
M8 – M16
Deflection at rated load:
15 – 50 mm
HD Bolts:
M6 – M12
Machine speeds:
300 up to 2000 rpm
Efficiency %:
15 mm defl 68,7 – 98,5 / 50 mm defl 75,2 – 99,5
Markets:
Maritime / Offshore / Industry / Energy / Petrochemical
Frame:
All steel components are Zinc plated
Application:
Axial and Centrifugal Fans / Air Handling Units / Pipework / Rotary and Multi-Cylinder Compressors
Chillers and Cooling Towers
Isolation of Sensitive Equipment
No rights can be derived from the information on this website and our documents. Information can be manufacture dependent.
