Originally designed for use with Type IPF Inertia Pouring Frames, the OS Mountings are now widely used to isolate vibration from every conceivable type of rotating and reciprocating machine. Where control of transient motion is required Open Spring Mountings can be used in conjunction with our Viscous Dampers Type SFD.
For applications requiring bolting down, the rubber seating pad and grommets ensure that there is no direct metal path between the machine and the seating, thus enhancing the high frequency noise isolation.

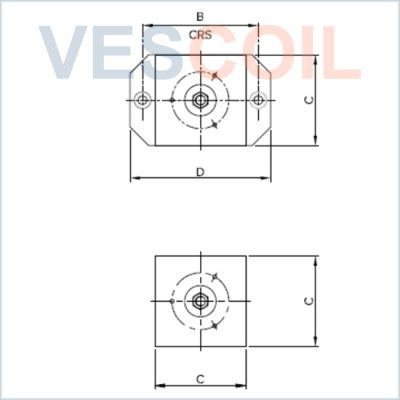

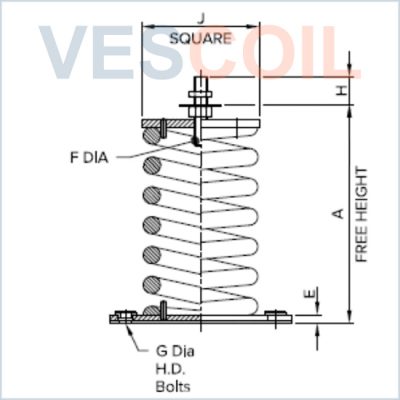

| Fig: | 9411 |
| Class & Approvals: | LR / UKAS |
| Rated load (kg): | 100 – 3500 kg |
| Bolt dia: | M16 – M24 |
| Deflection at rated load: | 50 – 100 mm |
| HD Bolts: | M12 – M16 |
| Machine speeds: | 300 up to 2000 rpm |
| Efficiency %: | 50 mm defl 75,2 – 99,5 / 100 mm defl 89,0 – 99,8 |
| Markets: | Maritime / Offshore / Industry / Energy / Petrochemical |
| Frame: | All steel components are Zinc plated |
| Applications: | Axial and Centrifugal Fans / Air Handling Units / Pipework / Pumps / Generating sets / Compressors / etc. |
