Documentation
| Fig: | 9124 |
| Class & Approvals: | On request |
| Norm: | EN (DIN) |
| Standard: | EN 593 |
| Flange ends: | DIN EN 1092-2 |

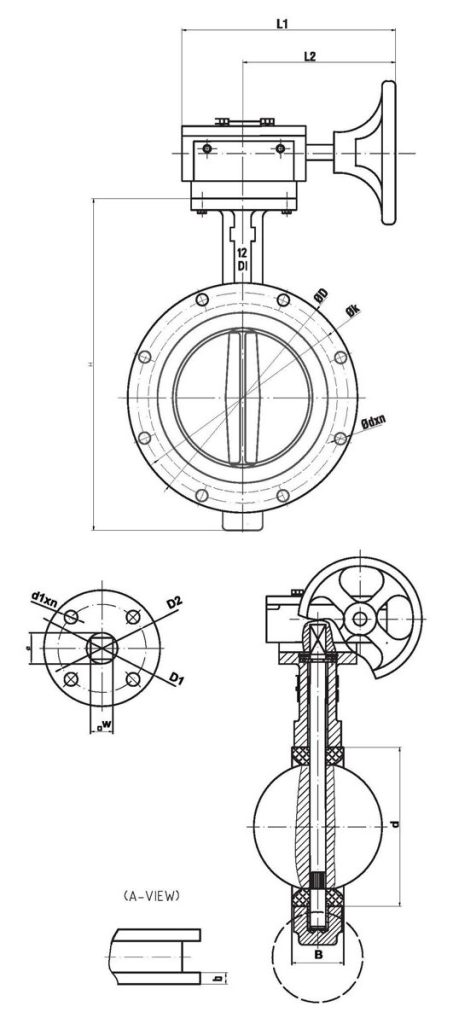

| Construction: | Centric butterfly valve (other on request) |
| Body type: | U-Section Type |
| Size: | DN50 to DN500 (2” to 20”) |
| Working Pressure: | PN16 |
| Temperature: | -12°C to +82°C (NBR) |
| Markets: | Maritime / Offshore / Industry / Energy / Petrochemical |
| Used in: | Water, Sea Water, Waste Water, Air, Oil, Gas, Etc. |
| Material body: | Ductile/Nodular Iron – GGG40 |
| (other materials on request) | |
| Material stem: | Stainless steel – 416 |
| Material seat: | NBR / EPDM / VITON / PTFE / NR (wear resistant) |
| Material disc: | Al-Bronze |
| (other materials on request) | |
| Material O-ring: | NBR |
| Operations: | Gear box (Steel) |
| Optional: | Electric / Hydraulic / Pneumatic |
| Optional: | Open-close indicator |
No rights can be derived from the information on this website and our documents. Information can be manufacture dependent.
